MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency

MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency

Brand Name: Star Power
Model Number: MP-HCF-1800
MOQ: 1 مجموعة
السعر: negotiable
Payment Terms: L/C ، T/T.
Supply Ability: 30 مجموعة/مجموعة في السنة
Detail Information
مكان المنشأ:
قوانغدونغ ، الصين
إصدار الشهادات:
CU, ISO
AC:
380 فولت
مقاس:
1800×900×2000ملم
كهرباء:
50/60 هرتز
كفاءة العمل:
حوالي 30 دولار لكل وعاء
تفاصيل التغليف:
عبوات جديرة بالبحر
إبراز:

380V hydraulic corner forming machine

,

1800x900x2000mm hydraulic forming machine

,

hydraulic kitchen sink forming machine

Product Description
MaxPress 380V Industrial Hydraulic Corner Forming Machine
Product Overview
The MaxPress 380V Industrial Hydraulic Corner Forming Machine is a heavy-duty metalworking solution designed for precision corner pressing and shaping of large-format stainless steel sheets (up to 1800×600×2000mm). Powered by a 380V three-phase motor, it delivers consistent corner radius formation (R3-R30mm) with minimal material springback.
Key Features
  • High-pressure hydraulic system with adjustable force (0-15MPa)
  • Reinforced cast-iron frame with precision linear guides
  • Dual-cylinder synchronous pressing mechanism for uniform pressure
  • Digital control panel with parameter adjustment and program storage
  • Safety features including emergency stop and overload protection
  • Quick-change die sets compatible with standard sink corner profiles
  • ±0.1mm positioning accuracy with 5-15 seconds cycle time per corner
Technical Specifications
Parameter Specification
Voltage 380V 50Hz
Rated Power 4.5KW
Max Press Force 150KN
Working Area 1800×600mm
Corner Radius Range R3-R30mm
Machine Dimensions 2200×1200×2000mm
Product Images

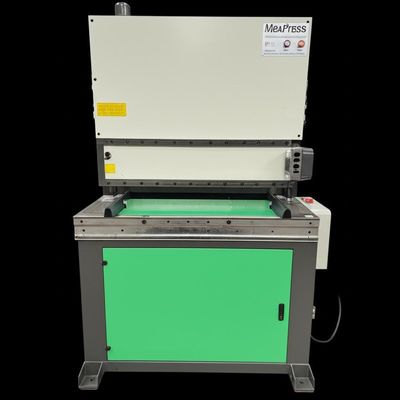

MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency 0

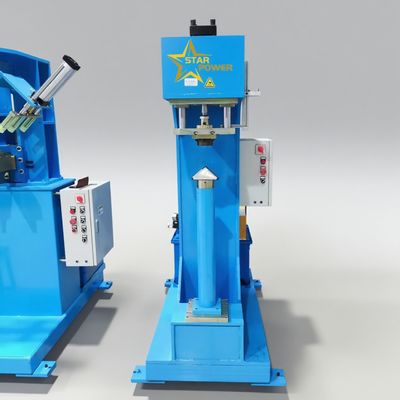

MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency 1

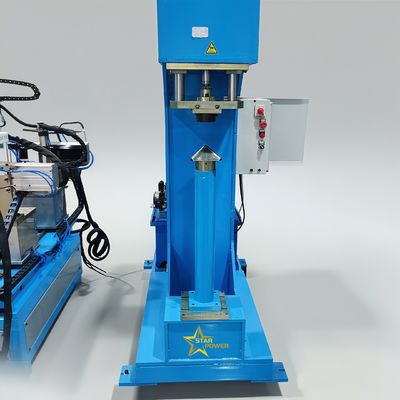

MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency 2

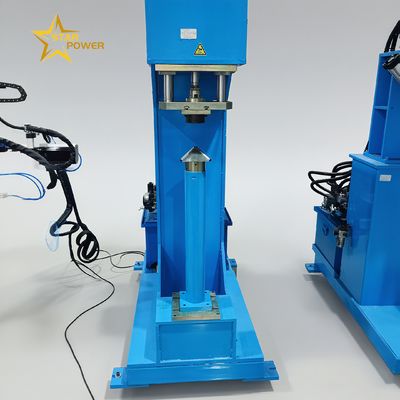

MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency 3

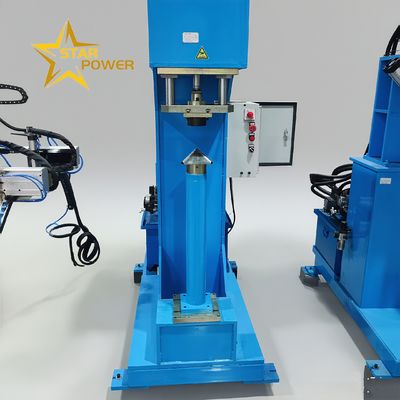

MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency 4
MaxPress 380V Industrial Hydraulic Corner Forming Machine for Stainless Steel Kitchen Sinks with 1800x900x2000mm Work Area and 30s/bowl Efficiency 5
Manufacturer Information

Founded in 2022, Foshan Star Power Technology Co., Ltd. is located in Foshan, a city renowned for its pottery and martial arts. With a registered capital of 5 million yuan, our company specializes in:

  • Information system integration
  • Machinery and metal product sales
  • Import-export services

In the field of sink production lines, we offer advanced solutions combining high-precision CNC technology with efficient production processes. Our complete sets of equipment can perform laser cutting, bending, and welding operations, ensuring high-quality manufacturing while meeting various production needs.

WELCOME TO CONTACT US!
